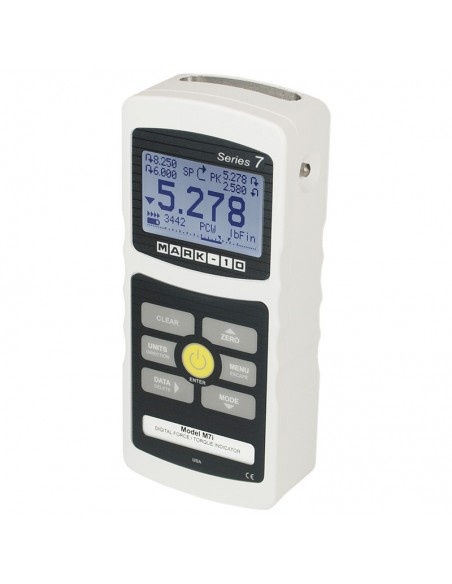

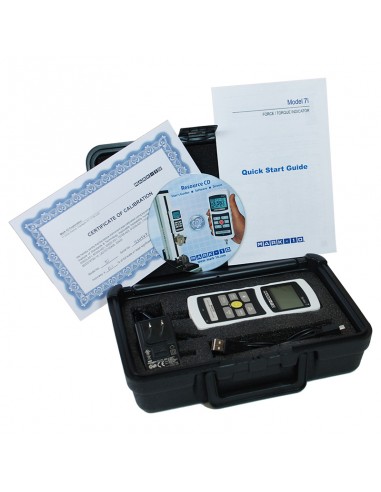

MARK-10 Model 7i Professional Force / Torque Indicator

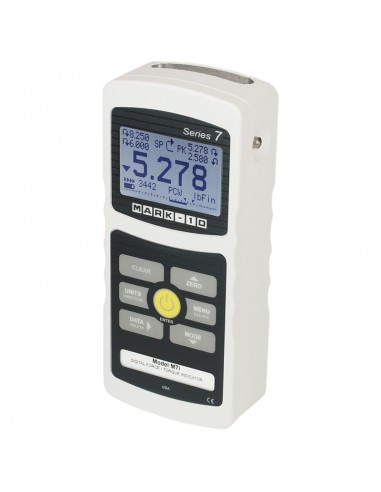

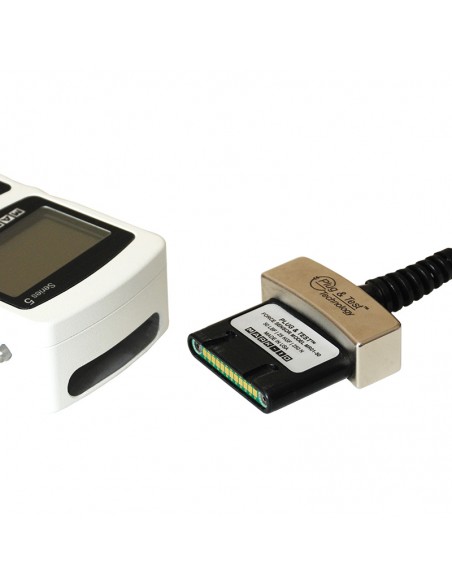

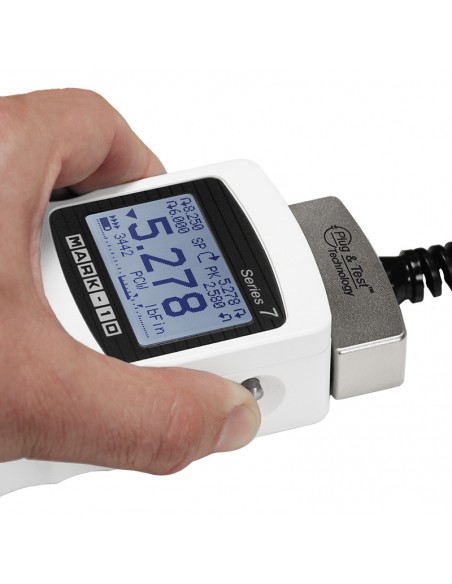

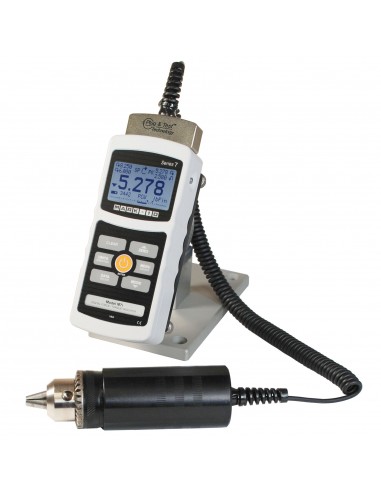

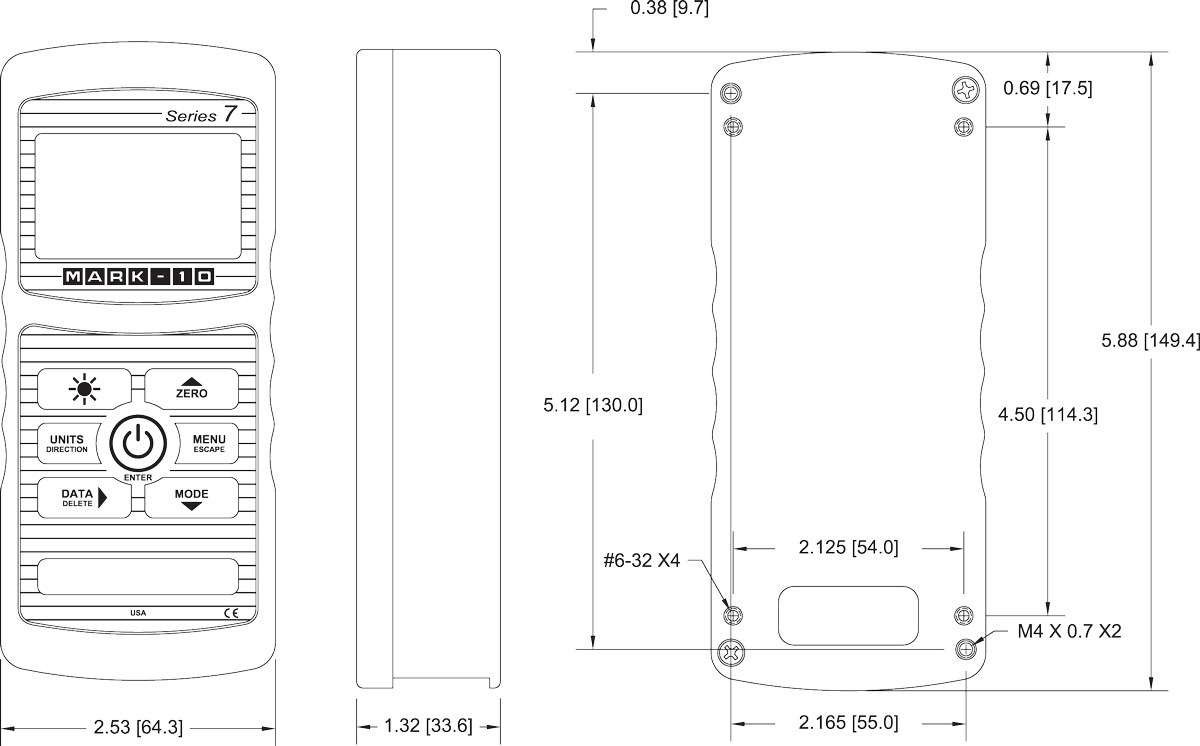

The M7i professional digital force / torque indicator is designed to work with a wide range of Mark-10 remote force and torque sensors. With exclusive Plug & Test® technology, all calibration and configuration data is saved within the sensor’s smart connector, not the indicator, allowing for true interchangeability. In addition, all sensors are fully compatible with other Mark-10 indicators.

The M7i features a blazingly fast sampling rate of 14,000 Hz, producing reliable results for extremely quick-action tests. In addition to the 5i indicator's functions, the M7i features high speed continuous data capture and storage, with memory for up to 5,000 readings, at an acquisition rate of up to 14,000 Hz.

Modelo

Descripción

Envío

En Stock

$28,799.04

Sin IVA
$1,572.00 USD

ManualCExample

Descargar (341.95KB)

Serial_Write_and_Read_VI

Descargar (129.97KB)

Ficha Tecnica Modelo 7i

Descargar (2.72MB)

Guia de usuario 7i

Descargar (1.49MB)

Modelos solidos M7i

Descargar (1.49MB)

Cuadro comparativo 7i 5i 3i

Descargar (826.47KB)

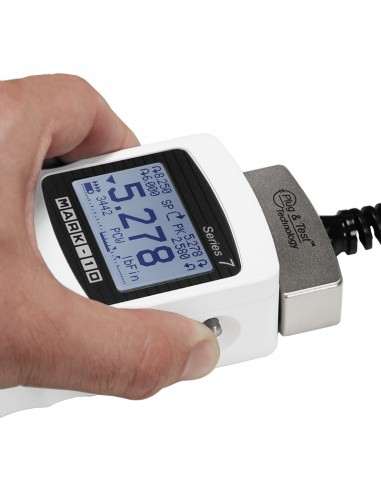

Interchangeable force and torque sensors through Plug & Test^® technology (sensors are sold separately)
Sensor password protection, for preventing use of an unauthorized sensor
Password protection for individual keys and calibration
High-speed 14,000 Hz sampling rate
Continous data capture of up to 5,000 data points, at up to 14,000 Hz, downloadable to a PC
Individual data point memory for up to 5,000 readings, downloadable to a PC
USB, RS-232, Mitutoyo, and analog outputs
Sample break detection with auto functions, including stopping movement of a Mark-10 motorized test stand
Automatic output / data storage / zeroing upon various event completions
1st / 2nd peak detection
5 units of measurement, plus Coefficient of Friction and user-defined unit with configurable name
Footswitch function - configure up to 3 functions per footswitch activation
Programmable set points, with indicators and outputs
Averaging mode - calculates average readings over time
External trigger mode - for switch contact testing or remotely stopping display update
Password protection, configurable for individual keys and calibration

Select from a broad range of interchangeable force and torque sensors, with force ranges up to 10,000 lbF (50 kN) and torque ranges up to 5,000 lbFin (550 Nm)

Plug and Test^® Force Sensors

R01

S-beam force sensors, tension and compression

R02

Miniature button force sensors, compression only

R03

Inline force sensors, tension and compression

R04

Miniature S-beam force sensors, tension and compression

R05

Fully enclosed smart sensors, push and pull

R06

Wire crimp pull sensor, tension only

R07

S-beam force sensors for Series F Advanced Test Frames

FS05

Integrated force sensor for Series F Advanced Test Frames

Plug and Test^® Torque Sensors

R50

Universal torque sensors

R51

Universal torque sensors with interchangeable attachments

R52

Tool calibration torque sensors

R55

High capacity torque sensors

The 7i indicator features several functions typically found in more complex instruments, such as materials testers, data acquisition systems, and PLCs. The following unique features are highlighted:

	High Speed Data Capture & Storage Series 7 can capture and store up to 5,000 continuous data points at a rate of up to 14,000 readings per second. This unique function is ideal for capturing switch activation forces, sharp breaks, and other short-duration applications. Configurable start and stop triggers are provided. The data acquisition rate is variable and can be slowed to also capture longer events, such as structure relaxation, material expansion, and others. Data from the storage buffer can be exported to data collection software such as MESUR™gauge for further analysis and graphing. Using a Series 7 gauge could replace cumbersome and expensive data acquisition hardware and software.
	Footswitch Command String Integrate your footswitch / automation system with a Series 7 gauge to improve testing ergonomics and efficiency; no need for multiple key presses. Up to three steps may be programmed for a single footswitch activation. Select from several commands, including request peak reading, zero the display, save to memory, and others. Time delays can be inserted between each step.
	Automatic Data Output / Save / Zero / I/O Pin Toggle Upon completion of several event types, the Series 7 can perform the following productivity-enhancing functions: Automatically save the peak reading to memory. Transmit the peak reading via USB, RS-232, or Mitutoyo output. Zero the display. Toggle an I/O pin, for example to stop movement of an ESM303 test stand. Applicable events include: Sample break detection (also applicable to samples which slip, click, or otherwise reach a peak, then fall). Completion of an averaging sequence. External trigger (ex. switch activation). 1st / 2nd peak capture (ex. tensile testing).
	User-defined Unit of Measurement Series 7 gauges display 6 standard units of measurement. One additional user-defined unit is provided for unique applications. A base unit is specified, along with a multiplier, and 5-character name. Typical applications: To measure the torque produced by pressing on a lever in a mechanical assembly, configure the multiplier based on the length of the lever, thereby converting a unit such as N into Ncm. To measure the pressure produced by a circular compression plate on a foam sample, configure the multiplier based on the area of the plate, thereby converting a unit such as lbF into psi.

	Table top stand (AC1008) Conveniently positions the indicator for easy viewing. Includes thumb screws to for indicator installation and thru holes for bench mounting.

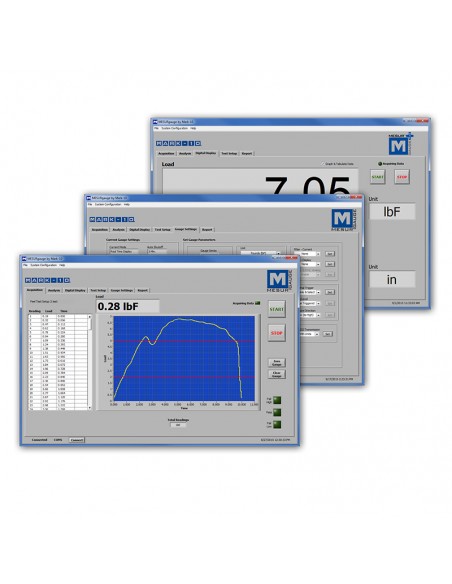

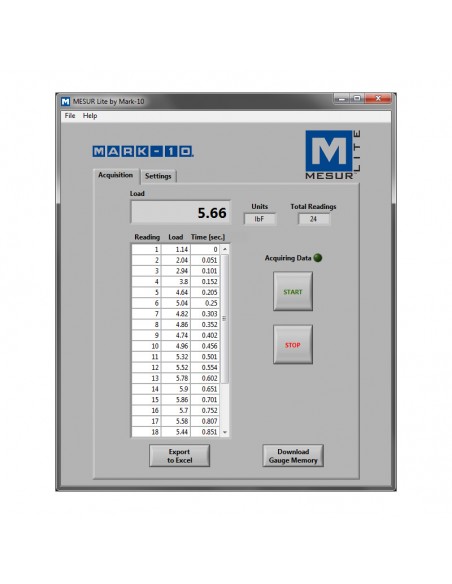

	MESUR^®gauge software (15-1004) Tabulates and plots load vs. time or load vs. travel. Also calculates statistics, exports to Excel, and more.
	Output cables Send test data to a PC, statistical printer, or other data collector for further analysis.
