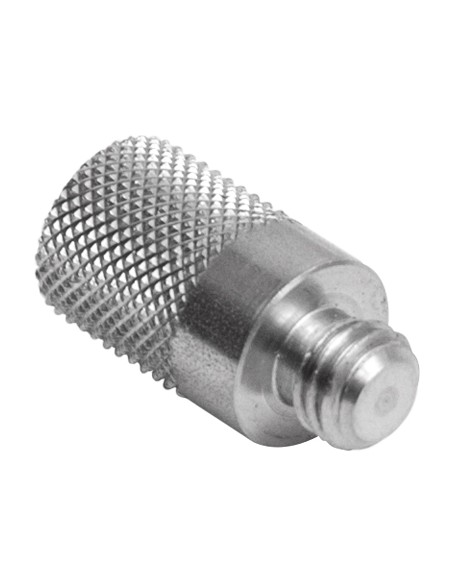

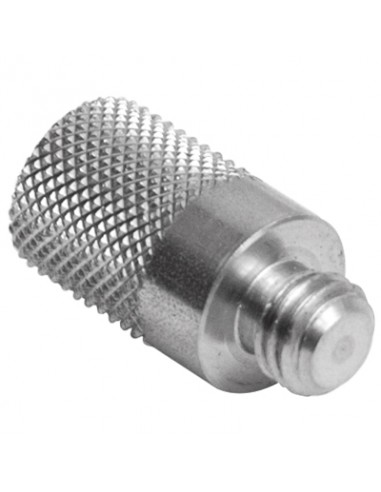

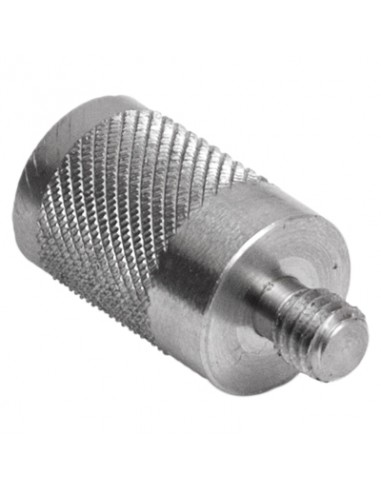

Mark-10 Thread Adapters & Couplings

Name: Mark-10 Thread Adapters & Couplings
Brand: Forcegage
SKU: 74
Price: 586.24 MXN
Availability: PreOrder

For use between force gauges, test stands, grips, and attachments.

Modelo

Capacity lbF [N]

Length in [mm]

Thread A

Thread B

Envío

En Stock

$586.24

Sin IVA
$32.00 USD

Model	Capacity lbF [N]	Length in [mm]	Thread A	Thread B
G1051	100 [500]	0.55 [14.0]	#4-40M	#10-32M
G1050	100 [500]	0.75 [19.1]	#10-32F	#4-40M
G1039	200 [1,000]	0.75 [19.1]	#10-32F	#10-32F
G1030	200 [1,000]	0.50[12.7]	#10-32F	5/16-18M
G1067	200 [1,000]	0.75 [19.1]	#10-32F	1/2-20M
G1048	200 [1,000]	0.75 [19.1]	#10-32F	M4M
G1057	200 [1,000]	0.75 [19.1]	#10-32F	M6F
G1054	200 [1,000]	0.75 [19.1]	#10-32F	M6M
G1060	200 [1,000]	0.75 [19.1]	#10-32M	#10-32M
G1063	200 [1,000]	1.30 [33.0]	#10-32M	5/16-18F
G1047	200 [1,000]	0.75 [19.1]	#10-32M	M4F
G1069	500 [2,500]	1.25 [31.8]	5/16-18F	1/4-28M
G1037	500 [2,500]	1.00 [25.4]	5/16-18F	5/16-18F
G1059	500 [2,500]	1.13 [28.7]	5/16-18F	1/2-20F
G1066	500 [2,500]	0.75 [19.1]	5/16-18F	1/2-20M
G1049	500 [2,500]	1.25 [31.8]	5/16-18F	M6M
G1040	500 [2,500]	0.92 [23.4]	5/16-18M	5/16-18M
G1091	1,000 [5,000]	1.30 [33.0]	1/2-20F	1/2-20F
G1041	500 [2,500]	1.06 [26.9]	1/2-20M	5/16-18M
G1044*	Adapter plate, 1/2-20F*
G1113	100 [500]	0.75 [19.1]	M3M	#4-40F
AC1082	100 [500]	0.75 [19.1]	#10-32M	#10-32M
AC1082-1	500 [2,500]	1.00 [25.4]	5/16-18M	5/16-18M
AC1082-2	2,000 [9,000]	1.50 [38.1]	1/2-20M	1/2-20M

*Compatible with any Mark-10 test stand with a threaded hole matrix base plate, such as TSF, ESM303, etc.

Ficha tecnica todos los puños

Descargar (4.7MB)

Modelos

Modelo	Capacity lbF [N]	Length in [mm]	Thread A	Thread B	Envío	Cantidad	Precio	Add to cart
G1051	100 [500]	0.55 [14.0]	#4-40M	#10-32M	Usualmente se envía en 7 días	-1	$586.24	Agregar al carrito
G1050	100 [500]	0.75 [19.1]	#10-32F	#4-40M	Usualmente se envía en 7 días	0	$586.24	Agregar al carrito
G1039	200 [1,000]	0.75 [19.1]	#10-32F	#10-32F	Usualmente se envía en 7 días	0	$494.64	Agregar al carrito
G1030	200 [1,000]	0.50[12.7]	#10-32F	5/16-18M	Usualmente se envía en 7 días	0	$586.24	Agregar al carrito
G1067	200 [1,000]	0.75 [19.1]	#10-32F	1/2-20M	Usualmente se envía en 7 días	0	$586.24	Agregar al carrito
G1048	200 [1,000]	0.75 [19.1]	#10-32F	M4M	Usualmente se envía en 7 días	0	$586.24	Agregar al carrito
G1057	200 [1,000]	0.75 [19.1]	#10-32F	M6F	Usualmente se envía en 7 días	0	$586.24	Agregar al carrito
G1054	200 [1,000]	0.75 [19.1]	#10-32F	M6M	Usualmente se envía en 7 días	0	$586.24	Agregar al carrito
G1060	200 [1,000]	0.75 [19.1]	#10-32M	#10-32M	Usualmente se envía en 7 días	0	$586.24	Agregar al carrito
G1063	200 [1,000]	1.30 [33.0]	#10-32M	5/16-18F	Usualmente se envía en 7 días	0	$586.24	Agregar al carrito
G1047	200 [1,000]	0.75 [19.1]	#10-32F	M4F	Usualmente se envía en 7 días	0	$586.24	Agregar al carrito
G1069	500 [2,500]	1.25 [31.8]	5/16-18F	1/4-28M	Usualmente se envía en 7 días	0	$586.24	Agregar al carrito
G1037	500 [2,500]	1.00 [25.4]	5/16-18F	5/16-18F	Usualmente se envía en 7 días	0	$586.24	Agregar al carrito
G1059	500 [2,500]	1.13 [28.7]	5/16-18F	1/2-20F	Usualmente se envía en 7 días	0	$586.24	Agregar al carrito
G1066	500 [2,500]	0.75 [19.1]	5/16-18F	1/2-20M	Usualmente se envía en 7 días	0	$586.24	Agregar al carrito
G1049	500 [2,500]	1.25 [31.8]	5/16-18F	M6M	Usualmente se envía en 7 días	0	$586.24	Agregar al carrito
G1040	500 [2,500]	0.92 [23.4]	5/16-18M	5/16-18M	Usualmente se envía en 7 días	0	$586.24	Agregar al carrito
G1091	1,000 [5,000]	1.30 [33.0]	1/2-20F	1/2-20F	Usualmente se envía en 7 días	0	$586.24	Agregar al carrito
G1041	500 [2,500]	1.06 [26.9]	1/2-20M	5/16-18M	Usualmente se envía en 7 días	0	$586.24	Agregar al carrito
G1044*	Adapter plate, 1/2-20F*	Adapter plate, 1/2-20F*	Adapter plate, 1/2-20F*	Adapter plate, 1/2-20F*	Usualmente se envía en 7 días	0	$1,227.44	Agregar al carrito
G1113	100 [500]	0.75 [19.1]	M3M	#4-40F	Usualmente se envía en 7 días	0	$586.24	Agregar al carrito
AC1082	100 [500]	0.75 [19.1]	#10-32M	#10-32M	Usualmente se envía en 7 días	0	$403.04	Agregar al carrito
AC1082-1	500 [2,500]	1.00 [25.4]	5/16-18M	5/16-18M	Usualmente se envía en 7 días	0	$403.04	Agregar al carrito
AC1082-2	500 [2,500]	1.50 [38.1]	1/2-20M	1/2-20M	Usualmente se envía en 7 días	0	$403.04	Agregar al carrito
