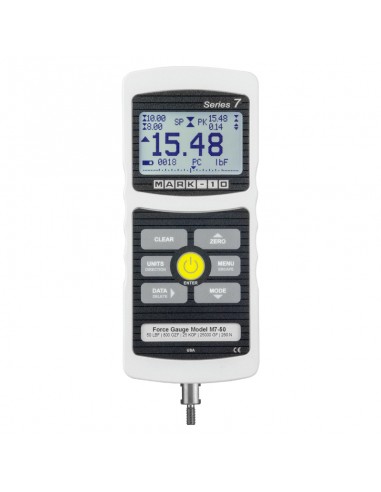

Mark-10 Series 5 Advanced Digital Force Gauges

Series 7 gauges include all the functions of Series 5 gauges, with several additional features, including high speed continuous data capture and storage, with memory for up to 5,000 readings, at an acquisition rate of up to 14,000 Hz. The gauges also feature programmable footswitch sequencing, break detection, and 1st / 2nd peak detection. Series 7 includes a coefficient of friction unit of measurement and user-defined unit of measurement. For productivity enhancement, the gauges also feature automatic data output, data storage, and zeroing functions upon the completion of break detection, averaging, external trigger, and 1st / 2nd peak detection.

Modelo
Descripción
Envío
En Stock
$31,858.48
Sin IVA
$1,739.00 USD



Series 7 force gauges are directly compatible with Mark-10 test stands, including the ESM303, to permit functions such as break testing, tensile testing, compression testing, dynamic load holding, PC control capability, and many other applications.

The gauges include MESUR® Lite data acquisition software. MESUR® Lite tabulates continuous or single point data. One-click export to Excel allows for further data manipulation.

Series 7 professional digital force gauges are designed with a number of sophisticated features for the most demanding tension and compression measurement applications, up to 500 lbF (2500 N). The gauges feature ±0.1% accuracy and a blazingly fast sampling rate of 14,000 Hz, producing reliable results for extremely quick-action tests.

Accuracy:  ±0.1% of full scale
Sampling rate:  14,000 Hz
Power: AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery Life: Backlight on:
up to 7 hours of continuous use
Backlight off:
up to 24 hours of continuous use
Measurement units: lbF, ozF, gF, kgF, N, kN, mN (depending on model)
Outputs: USB / RS-232:
Configurable up to 115,200 baud. Automatic output available up to 250 Hz. Includes Gauge Control Language 2 for full computer control.
Mitutoyo (Digimatic):
Serial BCD suitable for all Mitutoyo SPC-compatible devices.
Analog:
±1 VDC, ±0.25% of full scale at capacity.
General purpose:
Three open drain outputs, one input.
Set points:
Three open drain lines.
Safe overload: 200% of full scale (display shows “OVER” at 110% and above)
Weight: M7-012 - M7-100:
1.0 lb [0.45 kg]
M7-200 - M7-500:
1.2 lb [0.54 kg]
Environmental requirements: 40 - 100°F, max. 96% humidity, non-condensing
Warranty: 3 years (see individual statement for further details)
HS code: Model no. HS code:
M7 (all capacities) 9024100000
15-1004
09-1163
09-1165
08-1026
AC1030
AC1031
AC1032
AC1035
AC1051
AC1052		 9024800000
ECCN: EAR99
Country of origin: USA
5 Artículos
  • High-speed 7,000 Hz sampling rate
  • USB, RS-232, Mitutoyo, and analog output
  • Large backlit graphic display
  • 1,000-point data memory with statistics (min, max, mean, standard deviation) and outputs
  • Live load bar graph with set point markers
  • Programmable set points, with alarms and outputs
  • Peak readings and set points always displayed
  • Averaging mode - calculates average readings over time
  • External trigger mode - for switch contact testing or remotely stopping display update
  • Automatic data output via USB/RS-232
  • 5 selectable units of measurement
  • Configurable audio alarms and key tones
  • Password protection, configurable for individual keys and calibration
Capacity x Resolution
Model lbF ozF kgF gF N kN mN
M5-012 0.12 x 0.00002 2 x 0.0005 - 50 x 0.01 0.5 x 0.0001 - 500 x 0.1
M5-025 0.25 x 0.00005 4 x 0.001 - 100 x 0.02 1 x 0.0002 - 1000 x 0.2
M5-05 0.5 x 0.0001 8 x 0.002 - 250 x 0.05 2.5 x 0.0005 - 2500 x 0.5
M5-2 2 x 0.0005 32 x 0.01 1 x 0.0002 1000 x 0.2 10 x 0.002 - -
M5-5 5 x 0.001 80 x 0.02 2.5 x 0.0005 2500 x 0.5 25 x 0.005 - -
M5-10 10 x 0.002 160 x 0.05 5 x 0.001 5000 x 1 50 x 0.01 - -
M5-20 20 x 0.005 320 x 0.1 10 x 0.002 10000 x 2 100 x 0.02 - -
M5-50 50 x 0.01 800 x 0.2 25 x 0.005 25000 x 5 250 x 0.05 - -
M5-100 100 x 0.02 1600 x 0.5 50 x 0.01 50000 x 10 500 x 0.1 - -
M5-200 200 x 0.05 3200 x 1 100 x 0.02 - 1000 x 0.2 1 x 0.0002 -
M5-300 300 x 0.1 4800 x 2 150 x 0.05 - 1500 x 0.5 1.5 x 0.0005 -
M5-500 500 x 0.1 8000 x 2 250 x 0.05 - 2500 x 0.5 2.5 x 0.0005 -
M5-750* 750 x 0.5 12000 x 10 375 x 0.2 - 3750 x 2 3.75 x 0.002 -
M5-1000* 1000 x 0.5 16000 x 5 500 x 0.2 - 5000 x 2 5 x 0.002 -
M5-1500* 1500 x 1 24000 x 20 750 x 0.5 - 7500 x 5 7.5 x 0.005 -
M5-2000* 2000 x 1 32000 x 20 1000 x 0.5 - 10000 x 5 10 x 0.005 -

Series 5 force gauges are shipped as shown at left, and include the following accessories:

(1) Extension rod *
(1) Hook *
(1) Cone *
(1) Chisel *
(1) V-Groove *
(1) Flat *
(1) Coupling *
(1) Thread adapter *
(1) Carrying case
(1) USB cable
(1) AC adapter
(1) Battery
(1) Certificate of calibration with data

* The specific accessory depends on the force gauge model. See Included Accessories section for details.

A wide range of test stands and gripping fixtures

MESUR®gauge software (15-1004)
Tabulates and plots load vs. time or load vs. travel. Also calculates statistics, exports to Excel, and more.
Output cables
Send test data to a PC, statistical printer, or other data collector for further analysis.
Eye end adapters
Allow for quick grip installation and removal, and prevent grip rotation.
Mount to common test frames, load cells, and force gauges.
Mounting plate
For mounting Mark-10 gauges to a fixture or testing system. Includes mounting hardware.
Note: Gauge mounting plates are included with Mark-10 test stands.
Accessory Gauge Model
M5-012 - M5-20 M5-50 - M5-100 M5-200 - M5-500 M5-750 - M5-1000 M5-1500 - M5-2000
Extension Rod G1024 G1024 G1031 G1031 G1031
Cone G1026 G1026 G1033 G1033 G1033
Chisel G1025 G1025 G1032 G1032 G1032
V-Groove G1027 G1027 G1034 G1034 G1034
Flat G1029 G1029 G1036 G1036 G1036
Hook G1028 G1038 G1035 G1042 -
Coupling - G1039 G1037 - -
Thread Adapter - - - G1041 G1041
IN[MM]
M5-012 - M5-500

  Load Cell Thread
M5-012 - M5-100 #10-32M UNF
M5-200 - M5-500 5/16-18M UNC

M5-750 – M5-2000
