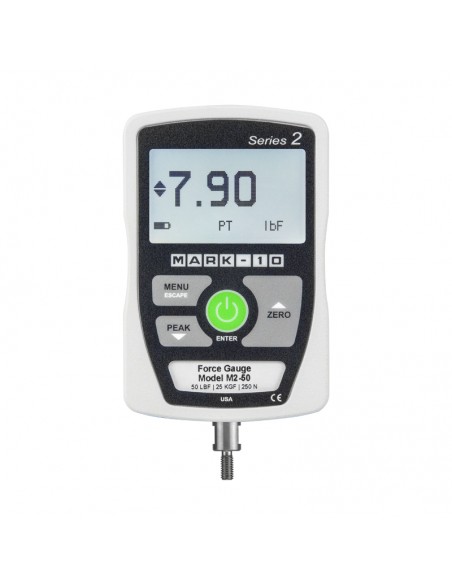

Mark-10 Series 2 Economical Digital Force Gauges

Series 2 digital force gauges are designed for basic tension and compression force testing applications up to 500 lbF (2,500 N). Peak tension and compression readings are reliably captured via the gauges' ±0.5% accuracy and 500 Hz sampling rate. A backlit graphic LCD displays the current, peak tension, or peak compression reading.

The gauges are overload protected to 200% of capacity. An ergonomic, reversible aluminum housing allows for hand held use or fixture mounting, rugged enough for applications in both production and laboratory environments. Series 2 gauges are directly compatible with Mark-10 test stands and grips.

Modelo

Descripción

Envío

En Stock

$8,610.40

Sin IVA
$470.00 USD

Accuracy:	±0.5% of full scale
Sampling rate:	500 Hz
Power:	AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery life:	Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use
Measurement units:	lbF, kgF, N
Safe overload:	200% of full scale (display shows “OVER” at 110% and above)
Weight:	M2-2 – M2-100: 0.7 lb [0.33 kg] M2-200 – M2-500: 0.9 lb [0.41 kg]
Environmental requirements:	40 – 100°F, max. 96% humidity, non-condensing
Warranty:	3 years (see individual statement for further details)
HS code:	Model no.	HS code:
	M2 (all capacities)	9024100000
	CERT 12-1049 08-1026 AC1030 AC1031 AC1032 AC1035 AC1052	9024800000
ECCN:	EAR99
Country of origin:	USA

Comparisonchart-forcegauges

Descargar (737.75KB)

Ficha tecnica series 2

Descargar (1.1MB)

Ficha tecnica series 2

Descargar (828.49KB)

Modelos solidos

Descargar (1.64MB)

Calculates peak tension and compression values
3 selectable units of measurement
Ultra-compact, ergonomic housing
Configurable default measurement unit and mode
500 Hz sampling rate

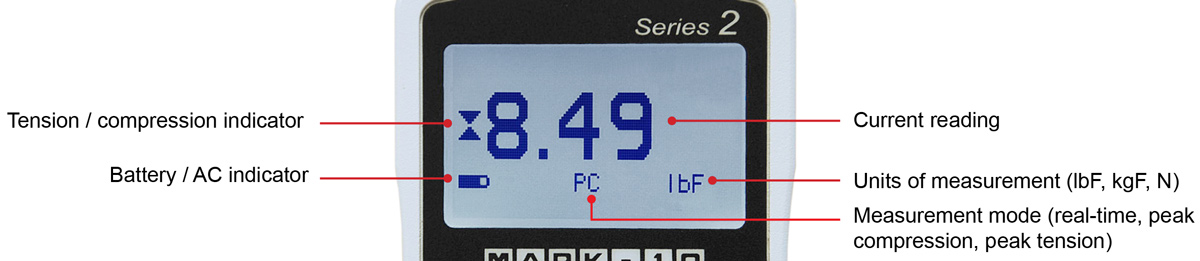

Large, backlit graphic display with auto-dimming
Powered by rechargeable battery or AC adapter

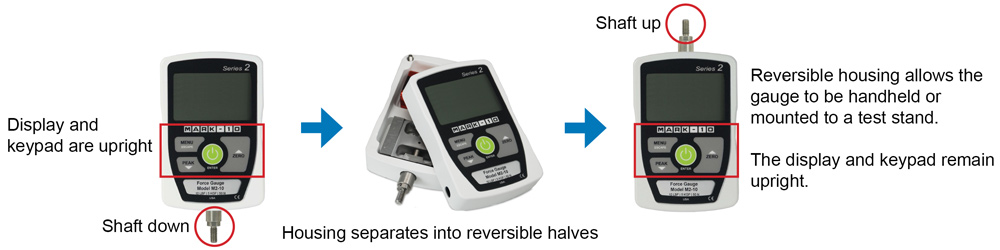

Reversible housing for alternate load cell orientation

Capacity x Resolution
Model	lbF	kgF	N
M2-2	2 x 0.002	1 x 0.001	10 x 0.01
M2-5	5 x 0.005	2.5 x 0.002	25 x 0.02
M2-10	10 x 0.01	5 x 0.005	50 x 0.05
M2-20	20 x 0.02	10 x 0.01	100 x 0.1
M2-50	50 x 0.05	25 x 0.02	250 x 0.2
M2-100	100 x 0.1	50 x 0.05	500 x 0.5
M2-200	200 x 0.2	100 x 0.1	1000 x 1
M2-500	500 x 0.5	250 x 0.2	2500 x 2

	A wide range of test stands and gripping fixtures
	Certificate of calibration with data (CERT)
	Mounting plate For mounting Mark-10 gauges to a fixture or testing system. Includes mounting hardware. Note: Gauge mounting plates are included with Mark-10 test stands.

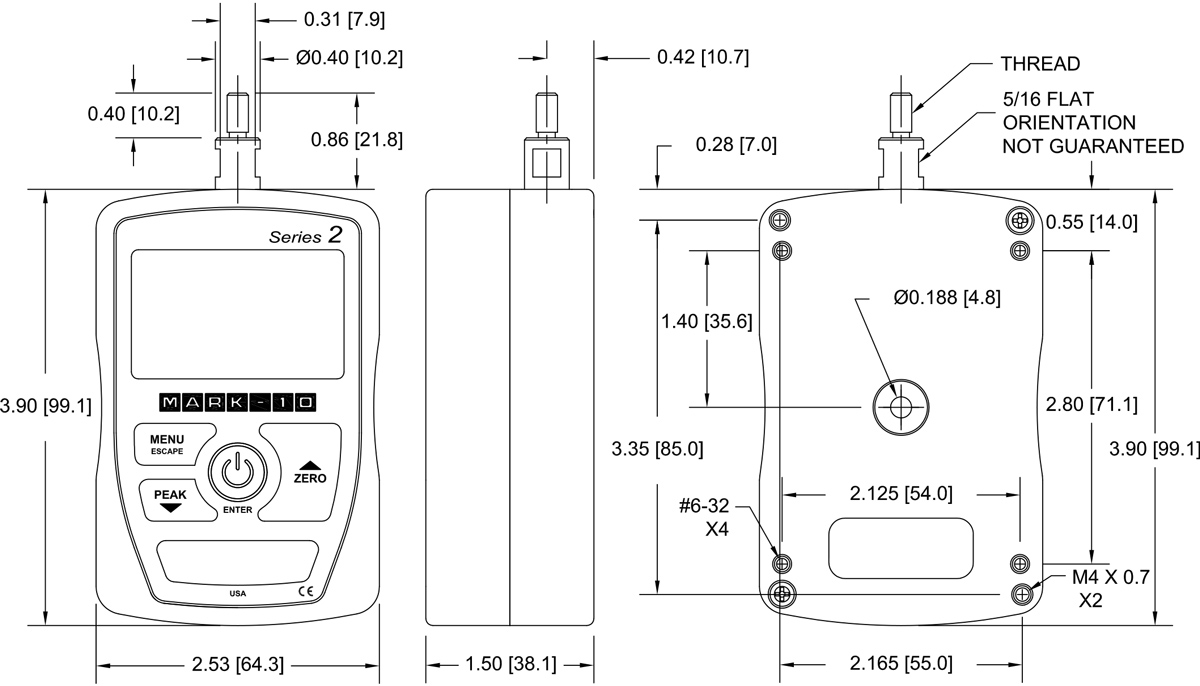

IN[MM]

Model	Load Cell Thread
M2-2 – M2-100	#10-32 UNF
M2-200 – M2-500	5/16-18 UNC

También te puede gustar

En Stock

Power and Communication

Mark-10 AC Adapters

Mark-10

$1,044.24

AC1030 Several universal AC adapters / chargers for Mark-10 force gauge and torque gauges are available, each of which consists of a body and replaceable prong. Spare prongs are also available.

En Stock

Power and Communication

08-1026 F Gauge/ T Gauge Rechargeable Battery

$586.24

For use with all Mark-10 force gauges and torque gauges powered by rechargeable batteries. Note: The 08-1006 battery, which was used with legacy Mark-10 gauges (Series BG, BGI, EG, and CG), is no longer available. The 08-1026 battery may be used instead, however, some gauge modifications are required to ensure proper charging characteristics. The gauge...

En Stock

Accesorios

Mark -10 Force Gauge Mounting Plate Kits

Mark-10

$1,227.44

These universal mounting plate kits are suitable for all Mark-10 force gauges in OEM and custom mounting applications. The plates feature an integrated dowel pin, which mates with the blind hole in the rear of Mark-10 force gauge housings. Note: Gauge mounting plates are included with Mark-10 test stands.

En Stock

Inicio

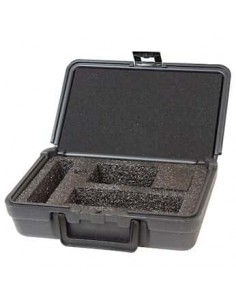

Mark-10 12-1049 Carrying case
